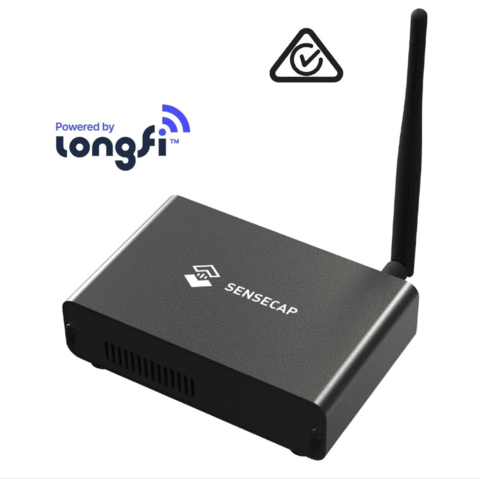

SenseCAP M1 Helium Indoor Hotspot HNT Miner

Name: SenseCAP M1 Helium Indoor Hotspot HNT Miner
SKU: 6205
Price: 500.00 USD
Availability: InStock

$500.00

Compare

Description

Handy Setup to Helium Network. 6 steps, 5 minutes, ready to go.
Powered by Mature Hardware Solutions. Raspberry Pi 4(2G/4G/8G RAM) and WM1302/WM1303 (Semtech SX1302/SX1303) baseband LoRa chip.
Secured and Reliable. Built-in ECC608 crypto chip, high-security authentication, and reliable connectivity.
Automatic Online Upgrades. Automatic OTA upgrades, without manual operation.
Remote Diagnosis. Built-in remote diagnostics mechanism, efficient online support.
64GB Large Storage. 64GB MicroSD card large storage, extending the lifetime of the gateway, fulfilling the memory requirement of potential upgrade.
Efficient Cooling Solution. Aluminum enclosure with a heatsink and cooling fan inside, ensuring long-term and stable operation.
Multiple Accessories. Fiberglass antenna, slider pad for sliding rod installation, and upcoming outdoor enclosure, etc.
FCC and CE Certificated. Available for personal and commercial use.

Processor	Raspberry Pi 4 (Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz)
RAM	4GB / 8GB
Storage	64GB MicroSD Card
Frequency	US915 EU868 CN470 AU915
Sensitivity	-125dBm @125KHz/SF7
Sensitivity	-139dBm @125KHz/SF12
TX Power	Up to 26 dBm
Antenna Gain	AU915/AS923: 2.6 dBi
Antenna Impedance	50 Ohm
Antenna Radiation Pattern	Omni-Directional
Wi-Fi	2.4 GHz and 5.0 GHz IEEE 802.11ac wireless
Bluetooth	Bluetooth 5.0, BLE
LoRaWAN	Supports Class A, C
Input Voltage	DC 5V – 3A
Interfaces	USB Type-C (Power Supply) * 1 Ethernet RJ45 * 1 RP-SMA Female Antenna Connector* 1
Operating Temperature	0°C to 50°C
Relative Humidity	0% – 90% (non-condensing)
Heat Dissipation	Aluminum enclosure, a heatsink, and a cooling fan
IP Grade	IP20
Certification	FCC / CE / RCM
