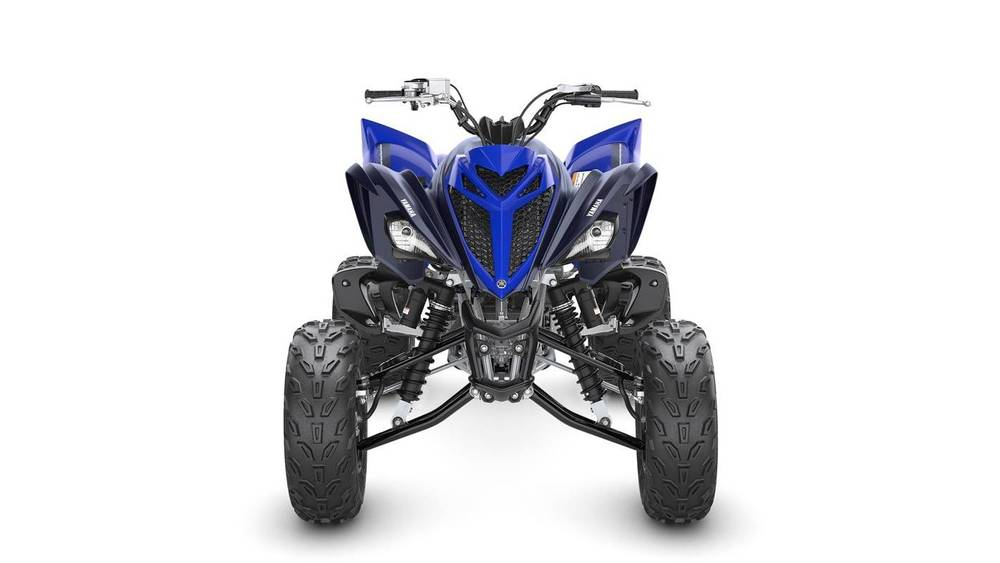

2023 Yamaha Raptor 700R

Description

Engine Type SOHC 4-stroke; 4 valves
Displacement 686cc
Bore x Stroke 102.0mm x 84.0mm
Engine Cooling Liquid
Fuel System Yamaha Fuel Injection (YFI), 44mm
Starting System Electric
Chassis
Front Suspension Independent double wishbone w/piggyback high/low-speed compression, rebound and threaded preload adjustment
Front Travel 9.1 in.
Front Brake Type Dual hydraulic disc
Front Tires AT22 x 7-10 Maxxis®
Rear Suspension Cast aluminum swingarm w/piggyback high/low-speed compression, rebound and threaded preload adjustment
Rear Travel 10.1 in.
Rear Brake Type Hydraulic disc
Rear Tires AT20 x 10-9 Maxxis®
Dimensions/Capacities
Dry Weight Curb Weight: 422 lb.
Fuel Capacity 2.9 gal.
Ground Clearance 9.5 in.
Machine Dimensions (LxWxH) 72.6 in. x 45.5 in. x 43.9 in.
Wheelbase 50.4 in.
Drive Train
Final Drive X-ring chain; 2WD
Transmission 5-speed w/reverse; wet multiplate clutch
General
Lighting Dual 30W Krypton headlights and LED brake light
Colors Team Yamaha Blue
Warranty 12 Month (Limited Factory Warranty)
